What Is a 510 Thread Cartridge? Complete Compatibility Guide

Table of Contents:

·         What Is a 510 Thread Cartridge?

·         Why Is It Called a “510 Thread”?

·         How a 510 Cartridge Works

·         Main Parts of a 510 Thread Vape

·         Understanding 510 Battery Compatibility

·         1ml and Other Common Cartridge Sizes

·         How to Choose a Compatible Battery and Cartridge

·         Common Compatibility Problems and FAQs

1) What Is a 510 Thread Cartridge?

A 510 thread cartridge is a small, replaceable container designed to attach to a compatible vape battery. It typically holds vape oil or another liquid formulation and includes a heating element that turns the liquid into an inhalable aerosol.

The term “510” refers to the threaded connection between the cartridge and the battery. It is commonly explained as a connection featuring 10 threads at a 0.5-millimeter pitch. Because this design is widely used, a 510 vape cartridge can often work with batteries made by different manufacturers.

In simple terms, the cartridge contains the material, while the battery supplies the power needed to heat it.

How Does a 510 Thread Cartridge Work?

A 510 cartridge works through a basic heating process:

1. The cartridge is screwed onto a compatible 510 thread battery.
2. The battery sends power to the cartridge’s heating element.
3. The heating element warms the liquid inside the cartridge.
4. The resulting aerosol travels through the mouthpiece.

Some batteries activate automatically when the user inhales. Others have a button that must be pressed. Advanced models may also offer adjustable voltage or temperature settings.

The cartridge and battery must make proper electrical contact for the device to work. Screwing the cartridge on too tightly may damage the connection, while attaching it too loosely can prevent the battery from detecting it.

Main Parts of a 510 Vape Cartridge

Although designs vary, most 510 thread vape cartridges contain the following components:

Mouthpiece

The mouthpiece is the upper section through which the aerosol is inhaled. It may be made from plastic, ceramic, glass, wood, or metal.

Tank

The tank stores the liquid or oil. Many cartridges use glass tanks because the material allows users to see how much liquid remains.

Heating Element

The heating element often called an atomizer converts electrical energy into heat. Many modern cartridges use ceramic heating technology, although wick-based and metal-coil designs are also available.

Intake Holes

Small openings allow the liquid to move from the tank toward the heating element. Their size and number may vary depending on the thickness of the formulation.

Threaded Base

The base connects the cartridge to a 510 battery. It also contains the electrical contact that transfers power from the battery to the heating element.

Why Is It Called a 510 Thread?

The name 510 thread describes the cartridge’s connection style. Although the term originally referred to specific thread measurements, it is now commonly used as a general compatibility category within the vaping industry.

The broad adoption of this connection has made 510 threaded cartridges one of the most recognizable cartridge formats available. However, the label does not guarantee that every cartridge will perform perfectly with every battery. Differences in airflow, cartridge width, voltage requirements, and recessed battery connections can still affect compatibility.

Types of 510 Thread Cartridges

Several cartridge formats use a 510 connection.

Refillable Cartridges

A refillable 510 cartridge is designed to be filled more than once. Its performance and usable lifespan depend on the product’s construction, the formulation used, and how well the cartridge is maintained.

Users should only fill a cartridge with a formulation specifically intended for that device. Household oils and other unsuitable substances should never be added.

Prefilled Cartridges

A prefilled 510 cartridge arrives with a formulation already inside. It is generally intended to be attached to a compatible battery and replaced when empty.

Disposable Cartridges

Some cartridges are designed for one-time use and cannot be opened or refilled. Unlike a disposable vape, however, the cartridge does not usually contain its own permanent battery.

Ceramic Cartridges

A ceramic vape cartridge uses ceramic material in or around its heating system. Ceramic components are commonly chosen for even heating and compatibility with thicker formulations.

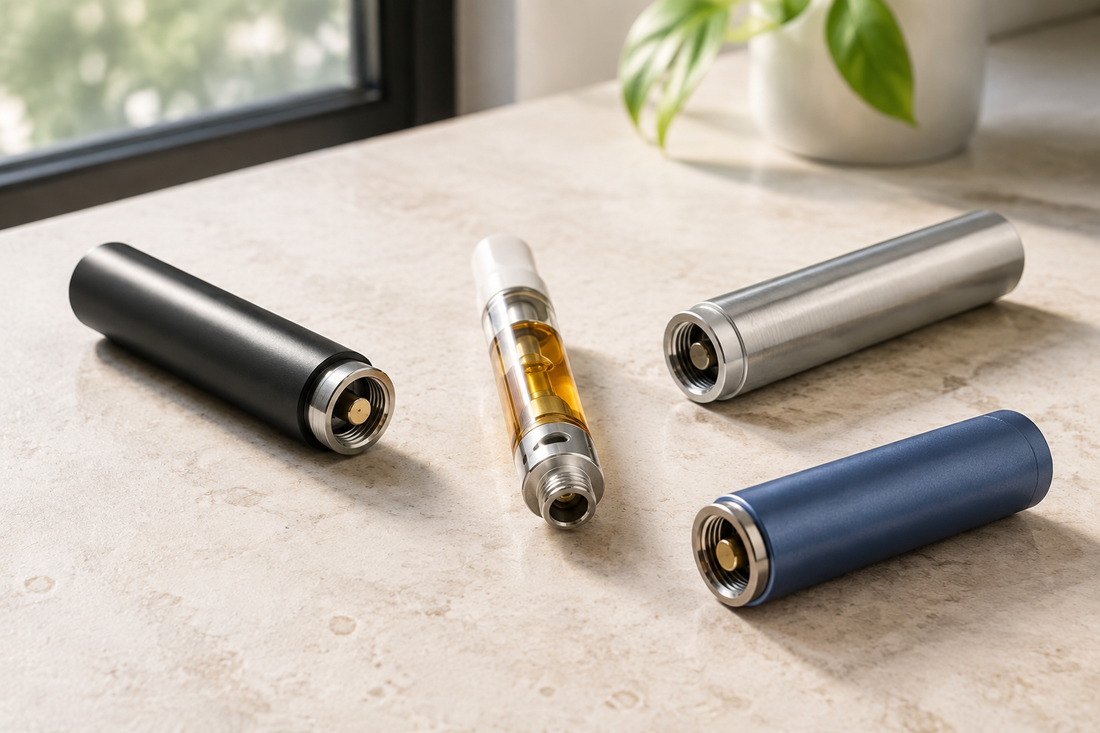

Are All 510 Cartridges Compatible?

Most products labeled 510 compatible share the same basic threaded connection, but universal compatibility should not be assumed.

Before attaching a cartridge, consider:

• Battery voltage and power range
• Cartridge resistance
• Cartridge diameter
• Airflow design
• Recessed or magnetic battery adapters
• Manufacturer recommendations

A narrow cartridge may fit a pen-style battery but sit loosely inside a wider concealed battery. Similarly, a cartridge may physically connect yet perform poorly if the battery supplies too much or too little power.

When possible, check the cartridge and battery specifications before use.

What Is a 510 Thread Battery?

A 510 thread battery is the rechargeable power source used with a compatible cartridge. Batteries are available in several styles, including slim pens, compact box-shaped devices, and concealed models that protect the cartridge inside the battery housing.

Common features include:

• Draw-activated operation
• Push-button activation
• Adjustable voltage
• Preheat settings
• USB charging
• Automatic shutoff
• LED battery indicators

Lower voltage settings generally produce less heat, while higher settings generate more heat. Excessive power can overheat the cartridge, create an unpleasant taste, or shorten the heating element’s life. Always follow the product manufacturer’s recommended operating range.

Benefits of a 510 Thread Vape Cartridge

The popularity of the 510 thread cartridge is largely connected to its convenience and broad availability.

Wide Compatibility

The 510 connection is used across many cartridge and battery designs, giving consumers more options than proprietary systems typically provide.

Replaceable Components

The battery can often be reused after the cartridge is empty. This allows the power unit and liquid container to be replaced separately.

Compact Design

Most 510 vape pens and cartridges are small, lightweight, and easy to store.

Simple Operation

Basic devices may require little more than attaching the cartridge and inhaling. Button-operated models usually involve only a few controls.

Adjustable Settings

Compatible batteries with variable voltage allow users to change the power level within the cartridge manufacturer’s recommended range.

How to Choose a 510 Thread Cartridge

When comparing cartridges, look beyond appearance and price. Important factors include:

Material Quality

Check the materials used in the tank, mouthpiece, seals, and heating element. Choose products from transparent manufacturers that provide clear specifications and testing information.

Formulation Compatibility

Different cartridges are designed for different liquid thicknesses. Using an incompatible formulation may cause clogging, leaking, weak output, or damage to the heating element.

Battery Requirements

Confirm that the cartridge is suitable for the voltage and power range of your 510 thread vape battery.

Capacity

Cartridge capacity affects size and how frequently the cartridge must be replaced or refilled. Available capacities vary by manufacturer and local regulations.

Product Source

Purchase only from lawful, reputable sources. The FDA has warned consumers against vaping products obtained from illicit or informal sellers and advises users not to modify cartridges or add substances to them.

Common 510 Cartridge Problems

Clogging

Thick liquid, condensation, cold temperatures, or residue inside the airway can restrict airflow. Follow the manufacturer’s cleaning and storage instructions rather than inserting sharp objects into the cartridge.

Leaking

Leaks may result from damaged seals, unsuitable liquid, temperature changes, improper storage, or overfilling a refillable cartridge.

Burnt Taste

A burnt taste can indicate excessive voltage, insufficient liquid reaching the heating element, or an exhausted cartridge.

Cartridge Not Working

If the cartridge does not activate, check whether the battery is charged and the contact points are clean. Reattach the cartridge gently without overtightening it. Stop using any component that appears damaged.

How Should a 510 Cartridge Be Stored?

Store a 510 vape cartridge upright in a cool, dry place away from direct sunlight, excessive heat, children, and pets. Extreme temperatures may change the liquid’s consistency and increase the risk of leaking or poor performance.

Do not leave cartridges in hot vehicles or near open flames. Use any protective caps supplied by the manufacturer and keep the contact points clean and dry.

2) Why Is It Called a “510 Thread”?

The name is often explained as a reference to the connector’s physical design: approximately 10 threads with a thread pitch of 0.5 millimeters. However, the history is slightly more complicated. The term is also closely associated with the early Joye 510 vaping device, whose threaded connection became widely adopted by other manufacturers.

Today, 510 thread is best understood as the name of a broadly used connection format rather than a complete engineering specification.

What Does 510 Thread Mean?

A 510 thread is the screw-style connection that joins a vape cartridge, atomizer, or tank to a compatible battery.

The “510” name is commonly interpreted as:

• “5” referring to a 0.5-millimeter thread pitch
• “10” referring to the approximate number of threads

This explanation appears frequently in vaping terminology, but it should not be treated as the whole story. Public descriptions are not always consistent, and the term became popular partly because of the Joye 510 product line introduced during the early development of electronic cigarettes.

As manufacturers began producing compatible devices, 510 threading evolved from a product-specific connection into a widely recognized industry format.

Where Did the 510 Connection Originate?

The 510 connector is generally associated with the Joye 510 electronic cigarette developed by Joyetech around 2008. The product used a threaded connection that allowed its battery and atomizer to be separated.

At the time, many vaping devices relied on their own connection types. The Joye 510 design became popular, and other manufacturers began producing batteries, atomizers, and accessories with compatible connectors.

As more companies adopted the format, users could combine certain components from different manufacturers. The connection gradually became known simply as the 510 thread.

This history explains why “510” functions more like the name of a product-derived format than a precise technical standard. A detailed history of the format similarly identifies both the Joye 510 product and the commonly repeated 10-thread, 0.5-millimeter explanation as influences on the name.

How Does a 510 Thread Connection Work?

A typical 510 thread connection performs two jobs: it physically attaches the cartridge to the battery and helps complete the electrical circuit.

The connection usually includes:

• An outer threaded metal body
• A center electrical contact
• An insulating ring separating the contacts
• A matching connector on the cartridge or atomizer

When a 510 cartridge is gently screwed onto a compatible battery, the center contacts touch each other. The threaded outer sections provide another electrical contact path while also holding the components together.

When the battery activates, electrical power travels through the connection to the cartridge’s heating element. The heating element then warms the formulation inside the cartridge.

Why Did the 510 Thread Become an Industry Standard?

The success of 510 threading comes largely from its simplicity and broad compatibility.

Cross-Brand Compatibility

A shared connection allows many cartridges, tanks, and batteries to work across different product lines. This gives consumers more flexibility than a completely proprietary system.

Replaceable Components

With a 510 threaded battery, the cartridge or atomizer can usually be replaced without discarding the battery. Similarly, a working cartridge may be moved to another compatible battery.

Simple Attachment

The screw-on design is straightforward. It does not normally require clips, unusual alignment, or brand-specific locking mechanisms.

Compact Size

The connector is small enough for slim vape pens while remaining suitable for many larger regulated devices.

Manufacturing Familiarity

Because the design has been used for years, manufacturers have extensive experience producing 510 compatible cartridges, batteries, tanks, and adapters.

Together, these advantages helped turn the connection into one of the most recognizable formats in the vaping industry.

What Products Use 510 Threading?

A 510 connection can be found on several types of vaping hardware.

Vape Cartridges

A 510 thread cartridge contains a liquid or oil formulation and a heating element. It screws onto a compatible battery that supplies power.

Vape Pen Batteries

A 510 thread battery is a compact power source commonly used with cartridges. Some activate automatically when the user inhales, while others use a button.

Box Mods

Many larger vape devices use a 510 connector to support compatible tanks and atomizers. Electrical requirements must still be checked before combining components.

Vape Tanks

Some reusable tanks attach to regulated devices through a 510 threaded connection.

Magnetic Adapters

Certain concealed cartridge batteries use magnetic adapters. The cartridge screws into a small 510 adapter, which is then placed inside the battery.

Closed pod systems and many disposable devices do not use this format. Instead, they rely on fixed or proprietary connections.

Are All 510 Thread Cartridges Universal?

No. The term 510 compatible suggests broad compatibility, but it does not guarantee that every cartridge will work with every battery.

Products may differ in:

• Center-contact height
• Connector depth
• Cartridge diameter
• Airflow design
• Electrical resistance
• Battery voltage
• Manufacturing tolerances

For example, a cartridge may screw onto a battery but fail to activate because the center contacts do not meet. A wider cartridge may also be unable to fit inside a battery with a recessed chamber.

In other cases, the cartridge and battery may connect physically but have incompatible electrical requirements. Users should review both manufacturers’ specifications before combining components.

Is a 510 Thread the Same as an eGo Thread?

A 510 thread and an eGo thread are not the same connection.

A traditional 510 connection is smaller and is generally located inside the battery connector. An eGo connection uses a larger outer thread. Some older vape batteries included both connection types, allowing them to support a wider variety of atomizers and tanks.

An adapter may allow certain eGo components to work with a 510 battery, but compatibility should always be confirmed before attachment.

Is a Magnetic Cartridge Still 510 Threaded?

A cartridge placed into a magnetic battery may still have a 510 thread.

In many concealed battery designs, the cartridge first screws into a small magnetic adapter. The adapter then slides into the battery chamber and is held in place magnetically.

The battery itself does not screw directly onto the cartridge, but the connection between the cartridge and adapter still uses 510 threading.

Why the Name Can Be Misleading

The term 510 thread can sound like a formal specification that guarantees universal compatibility. In practice, it describes a general connection format.

Two products carrying the 510 compatible labels may still have minor mechanical or electrical differences. The name does not provide complete information about:

• Recommended voltage
• Cartridge resistance
• Maximum power
• Airflow requirements
• Cartridge width
• Center-pin design

For this reason, consumers should not use the “510” label as the only compatibility check.

How to Attach a 510 Cartridge Properly

A 510 cartridge should be attached gently and only by hand.

Follow these general steps:

1. Turn off the battery if it has a power button.
2. Check the cartridge and battery contacts for visible damage or residue.
3. Align the cartridge with the battery connector.
4. Turn it clockwise without applying excessive pressure.
5. Stop when the cartridge feels secure.
6. Select a low supported voltage if the battery is adjustable.
7. Follow the manufacturers’ operating instructions.

Avoid overtightening the cartridge. Excessive force can damage the threads, compress the center contact, or make the cartridge difficult to remove.

3) How a 510 Cartridge Works

A 510 cartridge works by using electrical power from a compatible battery to heat the liquid or oil stored inside the cartridge. When the device is activated, a small heating element warms the formulation and produces an aerosol that travels through the cartridge’s airway and mouthpiece.

The cartridge attaches to the battery through a widely used screw-style connection known as a 510 thread. This connection secures the components and creates the electrical contact required to power the heating element.

Understanding how a 510 cartridge works can help users choose compatible hardware, operate it correctly, and recognize common problems such as clogging, leaking, or a burnt taste.

Main Parts of a 510 Vape Cartridge

To understand how the system operates, it helps to examine the main 510 cartridge components.

Mouthpiece

The mouthpiece is the upper section of the cartridge. It connects to the internal airway and allows the aerosol to leave the device.

Mouthpieces may be made from plastic, ceramic, metal, glass, or wood. Some refillable cartridge designs use removable mouthpieces, while sealed cartridges are not intended to be opened.

Tank

The tank stores the cartridge’s liquid or oil. It is commonly made from glass, although some models use plastic or other materials.

Transparent tanks allow users to monitor the amount of liquid remaining and check for bubbles, discoloration, or leaks.

Heating Element

The cartridge heating element, also called an atomizer, converts electrical energy into heat. Depending on the design, it may use a metal coil, ceramic core, wick, or a combination of materials.

The heating element must warm the formulation sufficiently to produce an aerosol without overheating it.

Wick or Ceramic Core

A wick or porous ceramic structure carries liquid from the tank toward the heating area. The material must remain adequately saturated during operation.

If the heating element activates without enough liquid around it, the cartridge may produce a dry or burnt taste.

Intake Holes

Small intake openings allow the formulation to move from the tank into the heating chamber. Their size and position are often selected according to the thickness of the intended liquid.

A formulation that is too thick may not flow through the openings efficiently. One that is too thin may increase the risk of flooding or leaking.

Central Airway

The central airway carries the aerosol from the heating chamber to the mouthpiece. Condensation or residue can accumulate in this passage and eventually restrict airflow.

Threaded Base

The 510 threaded base connects the cartridge to the battery. It also forms part of the electrical pathway between the two components.

Center Contact and Insulator

The bottom of the cartridge contains a center electrical contact. An insulating ring separates it from the outer metal body, helping prevent the positive and negative electrical paths from touching directly.

How Does a 510 Cartridge Work Step by Step?

The operating process happens in several stages.

1. The Cartridge Connects to the Battery

The user gently screws the 510 vape cartridge onto a compatible battery. The outer threads secure the cartridge while its center contact meets the battery’s center pin.

These contact points must align correctly. If the cartridge is attached too loosely, the circuit may not connect. Overtightening can push down or damage the contact pin.

2. The Battery Activates

A 510 battery may use one of two common activation methods:

• A draw-activated battery turns on when the user inhales.
• A button-activated battery supplies power when its button is pressed.

Some button-operated models require several quick clicks to turn the device on or off.

3. Electricity Reaches the Heating Element

Once activated, the battery sends electrical current through the 510 connection to the cartridge’s heating element.

The amount of power delivered depends on battery voltage, cartridge resistance, and device settings. This is why physical fit alone does not guarantee safe or effective electrical compatibility.

4. The Heating Element Warms the Formulation

The heating element converts electricity into heat. Liquid near the heating area absorbs this heat and forms an aerosol.

This process is often casually called vaporization, although the output may contain both vaporized compounds and tiny liquid droplets.

5. Air Moves Through the Cartridge

As the user inhales, air enters through small openings near the cartridge base or battery connection. It moves past the heating chamber and mixes with the newly formed aerosol.

Airflow affects draw resistance, temperature, and the amount of aerosol produced.

6. The Aerosol Travels Through the Mouthpiece

The aerosol moves through the cartridge’s central airway and exits through the mouthpiece. When activation stops, the heating element begins to cool.

The wick or ceramic core then draws more liquid toward the heating area in preparation for the next activation cycle.

How Does a Draw-Activated 510 Battery Work?

A draw-activated 510 thread battery contains a pressure or airflow sensor. When the user inhales, the change in air pressure signals the battery to send power to the cartridge.

These batteries are simple to operate because they do not require a button. However, thick residue, restricted airflow, or a leaking cartridge may interfere with sensor performance.

Some batteries also include an automatic cutoff that limits the length of each activation.

How Does a Button-Activated 510 Battery Work?

A button-operated battery activates the cartridge when the user presses and holds its control button. This design gives the user more direct control over the heating cycle.

Depending on the device, the button may also control:

• Power on and off
• Voltage selection
• Preheat mode
• Battery-level display
• Safety lock

Users should consult the product manual because button sequences vary between battery models.

How Voltage Affects a 510 Cartridge

Voltage determines how strongly the battery drives electricity through the cartridge. On a variable-voltage device, changing the setting affects the amount of heat produced.

Lower Voltage

A lower supported voltage generally produces less heat. It may create a smaller amount of aerosol and place less thermal stress on the cartridge.

Higher Voltage

A higher voltage generally increases heat and aerosol production. However, excessive voltage can overheat the formulation, damage the heating element, or produce an unpleasant burnt taste.

The highest available setting is not automatically the best setting. A battery should always be operated within the cartridge manufacturer’s recommended range.

What Is the Preheat Function?

Some 510 vape batteries include a preheat mode. This setting briefly operates the heating element at a controlled power level before regular use.

Preheating may help warm a thick formulation, particularly when the cartridge has been stored in a cool environment. However, repeated or unnecessary preheating may overheat the cartridge or contribute to leaking.

Use this feature only when supported by the battery and cartridge instructions.

Refillable vs. Prefilled 510 Cartridges

Both refillable and prefilled models use the same basic heating process, but they have different designs.

Refillable 510 Cartridge

A refillable model has an opening or removable mouthpiece intended for adding an approved formulation. It may be usable for a limited number of refill cycles before its heating element or seals deteriorate.

Only liquids specifically designed for the cartridge should be used. Avoid overfilling, and never add household oils or unauthorized substances.

Prefilled 510 Cartridge

A prefilled 510 cartridge arrives with a formulation already inside. Many are sealed and intended to be replaced when empty.

Forcing open or modifying a sealed cartridge may damage its seals, contaminate the contents, or create leaks.

Why Does a 510 Cartridge Become Clogged?

Clogging usually occurs when condensation or thickened residue builds up inside the central airway.

Common causes include:

• Cold storage conditions
• Thick formulations
• Repeated hard inhalation
• Condensation in the mouthpiece
• Extended storage
• Cartridge flooding
• Improper battery settings

Follow the manufacturer’s cleaning instructions. Avoid inserting sharp metal objects into the airway because they may damage internal components.

Why Does a 510 Cartridge Leak?

A leaking vape cartridge may result from damaged seals, excessive heat, pressure changes, unsuitable liquid thickness, overfilling, or improper storage.

Keeping the cartridge upright in a cool, dry place may reduce the likelihood of leaks. A cartridge that is cracked, heavily leaking, or visibly damaged should not be used.

Why Does a Cartridge Taste Burnt?

A burnt taste may occur when the heating element becomes too hot or does not receive enough liquid.

Possible causes include:

• Voltage set too high
• Repeated activations without enough cooling time
• Low liquid level
• Poor liquid flow
• Worn heating element
• Incompatible formulation
• Excessive preheating

Stop using a cartridge that continues to taste burnt after the recommended troubleshooting steps.

Why Is My 510 Cartridge Not Working?

If a 510 cartridge is not hitting, one of several issues may be responsible:

• The battery needs charging.
• The battery is turned off.
• The cartridge is attached too tightly or loosely.
• The contact points are dirty.
• The center contacts are not touching.
• The cartridge is clogged.
• The battery and cartridge are electrically incompatible.
• The cartridge’s heating element has failed.

Turn off the battery before inspecting or cleaning the connection. Do not pry at the contact pin with metal tools. If either component appears damaged or becomes unusually hot, discontinue use.

Are All 510 Cartridges Compatible?

Most products labeled 510 threaded use the same general screw connection, but compatibility can still depend on:

• Cartridge diameter
• Connector depth
• Center-pin height
• Battery voltage
• Cartridge resistance
• Airflow placement
• Magnetic-adapter requirements

A cartridge may physically attach but fail to make electrical contact. It may also connect successfully while operating outside its intended power range.

Check both manufacturers’ specifications before combining a battery and cartridge.

How to Store a 510 Vape Cartridge

Store a 510 cartridge upright in a cool, dry location away from direct sunlight and extreme temperatures.

Good storage practices include:

• Keeping the cartridge away from children and pets
• Protecting it from excessive heat
• Avoiding freezing conditions
• Using the original protective cap when available
• Keeping the threaded contacts clean and dry
• Removing a leaking cartridge from the battery
• Following the manufacturer’s storage instructions

Do not leave a cartridge or lithium-ion battery in a hot vehicle or near flames.

4) Main Parts of a 510 Thread Vape

The main parts of a 510 thread vape are the battery, cartridge, heating element, tank, mouthpiece, airflow system, and threaded connector. Each component has a specific role in storing the formulation, supplying power, producing heat, and directing the resulting aerosol through the device.

The battery and cartridge are usually separate. They connect through a screw-style fitting known as a 510 thread connection. This widely used format allows many compatible batteries and cartridges to work together, although physical and electrical compatibility should always be confirmed.

Understanding the parts of a 510 vape can make it easier to choose compatible hardware, follow proper maintenance practices, and identify common performance problems.

What Is a 510 Thread Vape?

A 510 thread vape is a vaping device that uses a 510-style connection between its battery and cartridge, tank, or atomizer.

In a typical cartridge-based setup:

• The 510 thread battery supplies electrical power.
• The 510 cartridge stores the liquid or oil.
• The atomizer converts electricity into heat.
• The airflow system carries the aerosol to the mouthpiece.

The name “510” identifies the general connector format. It does not describe the cartridge capacity, battery size, formulation, or voltage.

The Two Main Sections of a 510 Vape

Most 510 vape pens can be divided into two primary sections: the battery and the cartridge.

510 Thread Battery

The 510 battery is the lower section of the device. It stores electrical energy and sends power to the cartridge’s heating element.

Depending on the model, the battery may include a power button, automatic draw sensor, voltage controls, charging port, indicator light, or preheat function.

510 Thread Cartridge

The 510 thread cartridge is the upper section. It usually contains the tank, formulation, heating element, airflow passage, and mouthpiece.

Some cartridges arrive prefilled and sealed. Others are specifically designed to be refilled a limited number of times.

1. 510 Thread Battery

The vape battery is the device’s power source. Most modern models contain a rechargeable lithium-ion cell housed inside a metal or plastic body.

Battery capacity is commonly measured in milliampere-hours, or mAh. A higher mAh rating generally indicates that a battery can operate longer between charges, but actual battery life also depends on voltage, cartridge resistance, usage patterns, and battery condition.

Common battery styles include:

• Slim pen-style batteries
• Compact box-shaped batteries
• Concealed cartridge batteries
• Button-activated batteries
• Draw-activated batteries
• Variable-voltage batteries

A battery should only be charged with equipment approved by its manufacturer.

2. 510 Thread Connection

The 510 thread connection is the screw-style fitting that joins the battery to the cartridge.

It performs two important functions:

• It physically secures the cartridge.
• It helps create the electrical circuit between the battery and atomizer.

The connection usually includes an outer threaded metal body and a separate center contact. An insulating ring prevents these contact points from touching each other directly.

Although 510 threading is widely used, not all batteries and cartridges are perfectly interchangeable. Contact depth, voltage, resistance, cartridge diameter, and airflow design may vary.

3. Center Contact

The center contact is a small metal point located in the middle of the battery connector. A matching contact appears on the bottom of the 510 cartridge.

When the cartridge is attached correctly, the two center contacts meet and allow power to reach the heating element.

A dirty, damaged, or recessed contact may prevent the cartridge from working. Overtightening can also push the contact downward and interfere with the connection.

The battery should be turned off before the contact area is inspected or cleaned.

4. Insulating Ring

A small insulating ring surrounds the center contact. It separates the central electrical pathway from the outer threaded body.

Without this insulation, the positive and negative contact paths could touch and create an electrical fault. If the insulating ring appears torn, melted, loose, or damaged, the component should not be used.

5. 510 Vape Cartridge

The vape cartridge is a replaceable component that stores the formulation and contains the heating system.

Cartridges are available in several designs:

• Prefilled cartridges
• Refillable cartridges
• Ceramic cartridges
• Wick-based cartridges
• Sealed single-use cartridges

Users should never force open a sealed cartridge or fill a refillable model with a substance that its manufacturer does not support.

6. Cartridge Tank

The tank is the chamber that holds the liquid or oil. It may be made from glass, plastic, metal, or a combination of materials.

A transparent tank makes it easier to check:

• Remaining liquid level
• Air bubbles
• Discoloration
• Cracks
• Leaks
• Movement of the formulation

The tank must remain properly sealed. Damage, overheating, pressure changes, or unsuitable liquid thickness can cause leaking.

7. Atomizer or Heating Element

The vape atomizer is the part that converts electrical energy into heat. It is one of the most important components in a 510 cartridge.

When the battery activates, power travels through the connector to the atomizer. The atomizer heats the nearby formulation and creates an aerosol.

Common atomizer designs include:

• Metal coils
• Ceramic cores
• Wick-and-coil systems
• Ceramic heating elements

Heating performance depends on the atomizer’s resistance, battery voltage, power output, formulation, and airflow.

8. Ceramic Core or Wick

A ceramic core or wick transfers the formulation from the tank to the heating area.

Porous ceramic absorbs liquid through tiny openings in its structure. Traditional wick systems use an absorbent material positioned near a metal coil.

If the core or wick cannot absorb enough liquid, the heating element may operate partially dry. This can cause weak output, overheating, or a burnt taste.

Formulation thickness must be appropriate for the cartridge’s intake and heating design.

9. Intake Holes

Intake holes are small openings positioned near the bottom of the tank. They allow the formulation to enter the heating chamber and reach the wick or ceramic core.

Their size and number may vary based on the intended liquid viscosity.

If the formulation is too thick, it may move too slowly through the intake holes. If it is too thin, it may flood the heating chamber or leak through the cartridge.

10. Central Airway

The central airway is the internal tube that carries aerosol from the heating chamber to the mouthpiece.

As the user inhales, air enters near the base of the cartridge, moves through or around the heating chamber, and travels upward through this airway.

Condensation and residue can accumulate inside it over time. This buildup is a common cause of a clogged vape cartridge.

Follow the manufacturer’s cleaning directions rather than inserting sharp objects into the airway.

11. Airflow Holes

Airflow holes allow outside air to enter the cartridge. They are commonly located around its base or near the battery connection.

The airflow system affects:

• Draw resistance
• Heating temperature
• Aerosol volume
• Cooling around the atomizer
• Overall cartridge performance

Some batteries may partially cover the cartridge’s airflow holes. This is one reason a cartridge can share the correct thread yet perform poorly with a particular battery.

12. Mouthpiece

The mouthpiece is the top section of the 510 vape cartridge. It connects to the central airway and provides the exit point for the aerosol.

Mouthpieces may be made from:

• Plastic
• Ceramic
• Metal
• Glass
• Wood

Some refillable cartridges have removable mouthpieces. Sealed cartridges have fixed mouthpieces and should not be forced open.

The mouthpiece should be kept clean and protected from dust or debris.

13. Activation Button

A button-activated 510 vape battery uses a physical control to send power to the cartridge.

Depending on the battery, the button may also control:

• Power on or off
• Voltage adjustment
• Preheat mode
• Safety lock
• Battery status

The exact number and pattern of button presses vary between devices. Users should follow the manufacturer’s instructions rather than assuming every battery operates the same way.

14. Draw-Activation Sensor

A draw-activated battery uses an internal airflow or pressure sensor instead of a button.

When the user inhales through the mouthpiece, the sensor detects the change in air pressure and activates the battery. Power then flows to the cartridge’s heating element.

This design makes the device simple to operate, but leaking liquid, condensation, or restricted airflow can affect the sensor’s performance.

15. Voltage Control

Some variable-voltage 510 batteries allow users to adjust the battery’s output.

Lower supported voltage generally produces less heat, while higher voltage produces more heat. Excessive power may overheat the formulation, shorten the atomizer’s lifespan, or create a burnt taste.

Users should remain within the cartridge manufacturer’s recommended voltage range.

16. Preheat Function

A preheat function briefly operates the heating element before normal activation. It may help warm a thick formulation, particularly after the cartridge has been stored in a cool environment.

Preheating should be used carefully. Repeated or unnecessary heating can thin the liquid excessively, contribute to leaking, or place additional stress on the heating element.

17. Indicator Light

Many 510 batteries include an LED indicator that communicates device status.

Depending on the model, different colors or flashing patterns may indicate:

• Battery activation
• Remaining battery level
• Selected voltage
• Charging status
• Connection failure
• Short-circuit protection
• Automatic cutoff

Because light codes are not standardized, users should consult the battery manual when interpreting them.

18. Charging Port

The charging port allows the battery to be connected to an approved power source.

Depending on its age and design, a battery may use:

• USB-C
• Micro-USB
• A screw-on USB charger

The battery should not be left charging unattended. Damaged cables, incorrect chargers, extreme temperatures, and incompatible power sources can create safety risks.

How the Parts of a 510 Vape Work Together

The operating process involves several components working in sequence:

1. The cartridge attaches to the battery through the 510 connector.
2. The center contacts complete the electrical connection.
3. A button or draw sensor activates the battery.
4. Electricity travels to the cartridge atomizer.
5. The heating element warms the nearby formulation.
6. Incoming air moves through the heating chamber.
7. The resulting aerosol enters the central airway.
8. The aerosol exits through the mouthpiece.

If one of these components fails, the entire system may stop working correctly.

Common Problems Linked to Specific Parts

Understanding the 510 vape components can make troubleshooting easier.

Cartridge Not Detected

This problem may involve dirty contacts, a recessed center pin, damaged threads, or incompatible hardware.

Burnt Taste

A burnt taste may be associated with excessive voltage, insufficient liquid flow, a worn atomizer, or an unsaturated ceramic core or wick.

Clogged Airflow

Restricted airflow usually involves condensation or residue inside the mouthpiece or central airway.

Leaking Cartridge

Leaks may originate from the tank, seals, intake holes, mouthpiece, or heating chamber.

Battery Not Charging

A charging problem may involve the cable, charging port, power source, internal battery, or safety circuit.

Stop using any component that appears cracked, swollen, melted, heavily corroded, or unusually hot.

5) Understanding 510 Battery Compatibility

Understanding 510 battery compatibility involves more than checking whether a cartridge can screw onto a battery. Although the 510 thread is one of the most widely used vape connection formats, products can still differ in voltage, electrical resistance, cartridge diameter, contact depth, and airflow design.

A cartridge may physically fit a battery but fail to activate. In other cases, it may connect properly while receiving an unsuitable amount of power. Checking both mechanical and electrical compatibility is therefore essential before combining a 510 thread battery with a cartridge.

This guide explains how 510 cartridge compatibility works, what specifications to check, and why some apparently compatible products do not perform correctly.

Are All 510 Batteries Universal?

No. 510 batteries offer broad compatibility, but they are not completely universal.

Two products may use the same general thread while differing in:

• Battery voltage
• Cartridge resistance
• Connector depth
• Center-pin height
• Cartridge diameter
• Airflow-hole placement
• Device power limits
• Magnetic-adapter requirements
• Manufacturing tolerances

These differences can affect whether the cartridge fits, makes electrical contact, receives suitable power, or allows adequate airflow.

For this reason, the thread type should be treated as the first compatibility check—not the only one.

The Four Types of 510 Compatibility

Proper compatibility can be divided into four main categories.

Mechanical Compatibility

Mechanical compatibility determines whether the cartridge physically attaches to the battery.

The threads must align, the cartridge must fit inside any protective chamber, and the connection must not require excessive force.

Electrical Compatibility

Electrical compatibility involves the relationship between battery voltage, cartridge resistance, current, and power.

Even if two products connect physically, an unsuitable power level can cause weak performance, overheating, or damage.

Airflow Compatibility

A cartridge requires a clear path for incoming air. Some batteries can block or restrict airflow holes located near the cartridge base.

Dimensional Compatibility

A cartridge may have the correct 510 thread but be too wide or tall for a recessed or concealed battery.

All four categories should be considered when assessing vape cartridge battery compatibility.

Check the 510 Thread Connection

Start by confirming that both products use a genuine 510 threaded connection.

A standard cartridge usually has an external threaded base. The battery has a matching threaded socket. The cartridge should attach smoothly by hand without wobbling, grinding, or requiring significant pressure.

Do not force incompatible threads together. Cross-threading can damage both components and prevent a secure electrical connection.

Attach the cartridge only until it feels secure. Overtightening does not improve performance and may push down the battery’s center pin.

Check Cartridge Diameter

Cartridge diameter is especially important with concealed and recessed batteries.

A pen-style battery leaves most of the cartridge exposed, so it can often support a wider range of cartridge sizes. A concealed 510 vape battery surrounds the cartridge with a protective housing, which creates a maximum diameter limit.

Before purchasing a cartridge, check:

• Cartridge width
• Battery-chamber width
• Required clearance
• Adapter dimensions
• Mouthpiece accessibility

A cartridge that is too wide will not fit inside the chamber even when its thread is technically compatible.

Check Cartridge Height

Height can also affect compatibility.

A very short cartridge may sit too deeply inside a concealed battery, making the mouthpiece difficult to access. A tall cartridge may extend beyond the battery’s protective housing.

Some batteries have adjustable or removable sections to accommodate different cartridge heights. Others are designed for a narrow range of sizes.

Review the battery’s supported cartridge dimensions before use.

Check the Center Contact

A working 510 connection requires the cartridge’s center contact to meet the battery’s center pin.

Some batteries use spring-loaded pins that adjust to small differences in cartridge design. Others use fixed contacts with less movement.

Contact problems can occur when:

• The cartridge contact is too short.
• The battery pin sits too deeply.
• The cartridge has been overtightened.
• Oil or condensation covers the contacts.
• The insulating ring is damaged.
• Manufacturing tolerances prevent alignment.

Turn off the battery before inspecting the connection. Clean it only according to the manufacturer’s instructions, and never pry at the center pin with a metal tool.

Check Battery Voltage

Voltage is one of the most important aspects of 510 battery compatibility.

A battery’s voltage affects how much power reaches the cartridge’s heating element. Too little power may create weak output, while excessive power can overheat the formulation, damage the atomizer, or produce a burnt taste.

Fixed-Voltage Batteries

A fixed-voltage battery operates at a preset output. It is simple to use but may not be suitable for cartridges designed for a different voltage range.

Variable-Voltage Batteries

A variable-voltage 510 battery allows users to select from multiple power settings. This provides greater flexibility when using compatible cartridges with different operating requirements.

Begin with the lowest manufacturer-supported setting and adjust only when permitted by the product instructions.

Check Cartridge Resistance

Cartridge resistance is measured in ohms and affects how much electrical current flows through the heating element.

The combination of voltage and resistance determines the power delivered to the cartridge. A low-resistance cartridge can draw more current than a high-resistance one at the same voltage.

Not every battery supports every resistance range. Some regulated batteries will flash an error or refuse to activate if the cartridge falls outside their supported limits.

Confirm that the cartridge’s resistance is compatible with the battery before use.

Check the Battery’s Power Range

Some manufacturers specify battery output in watts rather than—or in addition to—voltage.

Power that is too low may produce limited heating. Power that is too high may place excessive thermal stress on the atomizer.

The battery’s available range should overlap with the cartridge manufacturer’s recommended operating range. Never assume that the battery’s maximum setting is appropriate.

Check Airflow Design

A 510 cartridge commonly draws air through small openings around its base. These openings must remain unobstructed.

Potential airflow conflicts include:

• A battery rim covering the intake holes
• A recessed chamber that is too narrow
• A magnetic adapter blocking part of the airflow
• A cartridge screwed on too tightly
• Residue accumulating around the connection
• Incompatible bottom-airflow and side-airflow designs

If airflow is restricted, the cartridge may be difficult to draw from or may fail to activate a draw-activated battery.

Check the Activation Method

A 510 vape battery may use button activation or automatic draw activation.

Draw-Activated Battery

A draw-activated model uses an airflow or pressure sensor. It turns on when the user inhales.

The cartridge must allow enough airflow to trigger the sensor. A clogged or poorly matched cartridge may not activate it reliably.

Button-Activated Battery

A button-operated model supplies power when its control button is pressed. Airflow still matters, but activation does not depend entirely on detecting inhalation.

Some button-operated batteries also provide voltage selection and preheat functions.

Do Magnetic 510 Batteries Require an Adapter?

Many concealed batteries use a magnetic adapter instead of a direct threaded socket.

The 510 cartridge screws into the adapter, and the adapter then slides into the battery chamber. Magnets hold the assembly in place and align the electrical contacts.

Compatibility depends on:

• Correct adapter type
• Cartridge diameter
• Cartridge height
• Contact alignment
• Battery-chamber size
• Airflow clearance

Use only the adapter intended for the specific battery model. Similar-looking adapters may differ in length, polarity, or contact design.

Are 510 Cartridges Compatible With Vape Mods?

Some 510 cartridges can physically connect to larger regulated vape mods, but mechanical fit does not confirm electrical suitability.

A mod may be capable of delivering far more power than a small cartridge can safely handle. If the manufacturer permits the combination, the device must remain within the cartridge’s specified voltage, resistance, and power limits.

A standard pen-style 510 battery designed for cartridges is often simpler because its output range is typically more appropriate for that hardware category.

Is eGo Compatible With a 510 Battery?

An eGo thread and a 510 thread are different connection formats.

Some older batteries include both an inner 510 connection and an outer eGo thread. A battery with only one type may require a suitable adapter to support the other.

Check the manufacturer’s product description rather than relying on appearance. Do not force an eGo component into a 510 connector.

Signs of an Incompatible Battery and Cartridge

Potential signs of a compatibility problem include:

• The cartridge will not screw on smoothly.
• The cartridge does not sit securely.
• The battery flashes an error.
• The device fails to activate.
• The cartridge produces very weak output.
• The cartridge becomes unusually hot.
• The battery activates without producing aerosol.
• Airflow becomes severely restricted.
• The cartridge develops a persistent burnt taste.
• The cartridge does not fit inside the battery chamber.

Stop using the combination if either component overheats, leaks heavily, smells unusual, or appears damaged.

Why Is My 510 Cartridge Not Working with My Battery?

A connection failure does not always mean the products are incompatible. Common causes include:

Discharged Battery

Charge the battery with its manufacturer-approved equipment.

Dirty Contacts

Oil, dust, or condensation may interrupt the electrical pathway. Turn off the battery and follow the approved cleaning procedure.

Loose Connection

A cartridge attached too loosely may not make contact. Reattach it gently by hand.

Overtightened Cartridge

Excessive tightening may push down the center pin or damage the threaded connection.

Cartridge Failure

The cartridge’s heating element may be damaged or worn out.

Resistance Error

The battery may reject a cartridge outside its supported resistance range.

Blocked Airflow

A clogged cartridge or covered intake hole may prevent proper operation, particularly with a draw-activated battery.

How to Protect a 510 Thread Connection

Proper handling can extend the useful life of the battery and cartridge.

• Keep the contacts clean and dry.
• Attach cartridges gently by hand.
• Avoid overtightening.
• Remove leaking cartridges promptly.
• Store the battery away from metal objects.
• Keep the device away from extreme temperatures.
• Use only approved charging equipment.
• Do not use damaged cartridges or batteries.
• Follow the manufacturer’s storage instructions.
• Keep vaping products away from children and pets.

Do not attempt to repair damaged electrical contacts unless the manufacturer provides an approved procedure.

6) 1ml and Other Common Cartridge Sizes

Common vape cartridge sizes include 0.3ml, 0.5ml, 1ml, and 2ml. Among these options, the 1ml cartridge is one of the most widely recognized because it offers more capacity than smaller formats while remaining compact enough for many standard 510 thread batteries.

Cartridge size usually refers to the volume of liquid the tank is designed to hold not the cartridge’s physical dimensions or the amount of an active ingredient it contains. Two cartridges with the same capacity may differ in height, width, mouthpiece design, heating technology, and battery compatibility.

Understanding the differences between 1ml and other common cartridge sizes can help consumers compare hardware more accurately and avoid compatibility problems.

What Does Cartridge Size Mean?

A cartridge size shown in milliliters indicates the approximate internal liquid capacity of its tank.

For example:

• A 0.3ml cartridge holds approximately 0.3 milliliters.
• A 0.5ml cartridge holds approximately 0.5 milliliters.
• A 1ml cartridge holds approximately 1 milliliter.
• A 2ml cartridge holds approximately 2 milliliters.

Capacity should not be confused with weight. Milliliters measure volume, while grams and milligrams measure mass. The weight of a cartridge’s contents depends on the density of its formulation.

The labeled capacity may also describe the tank’s nominal design rather than the exact amount of usable liquid. A small amount of headspace may be required for assembly, pressure control, and normal operation.

Common Vape Cartridge Sizes

Manufacturers offer multiple capacities for different hardware formats and product requirements.

Cartridge size	Relative capacity	Typical characteristics
0.3ml cartridge	Small	Short, compact, and intended for a limited volume
0.5ml cartridge	Medium	Common balance between size and capacity
1ml cartridge	Standard full size	Higher capacity while remaining relatively compact
2ml cartridge	Large	More capacity but often taller or wider
Oversized cartridge	Varies	May require a specialized battery or chamber

Availability can vary by manufacturer, market, formulation, and local regulations.

What Is a 1ml Cartridge?

A 1ml vape cartridge is a cartridge designed to hold approximately one milliliter of liquid.

Many 1ml models use a 510 thread connection, allowing them to attach to compatible batteries. However, the capacity label does not confirm connection type. It also does not guarantee that the cartridge will fit every concealed or recessed battery.

A typical 1ml 510 cartridge may include:

• A glass or plastic tank
• A ceramic or coil-based atomizer
• Intake holes
• A central airway
• A fixed or removable mouthpiece
• A threaded metal base
• A center electrical contact

The exact height and diameter depend on the manufacturer’s design.

Why Are 1ml Cartridges Common?

The 1ml cartridge size is common because it provides relatively high capacity without requiring an especially large device.

Its practical characteristics may include:

• More capacity than 0.3ml and 0.5ml formats
• Fewer cartridge replacements for the same total liquid volume
• Compatibility with many exposed pen-style batteries
• Sufficient space for larger tanks and heating structures
• Broad availability from hardware manufacturers

However, a larger capacity does not automatically mean better performance. Heating quality, material construction, airflow, formulation compatibility, and battery settings are also important.

What Is a 0.3ml Cartridge?

A 0.3ml vape cartridge is one of the smaller commonly available formats.

Its compact tank contains less liquid than a 0.5ml or 1ml model. This capacity may be used for product samples, specialized formulations, or applications where a smaller overall package is preferred.

Possible advantages include:

• Compact dimensions
• Lower total liquid volume
• Less material remaining if the cartridge fails
• Suitability for testing a compatible formulation
• Potential fit with smaller battery housings

Possible limitations include:

• More frequent replacement
• Less tank capacity
• A shorter usage period
• Fewer available hardware options in some markets

Even a small cartridge must still match the battery’s thread, voltage, resistance, and airflow requirements.

What Is a 0.5ml Cartridge?

A 0.5ml cartridge holds approximately half the volume of a 1ml model.

It is often called a half-milliliter or half-gram cartridge, but these terms are not necessarily interchangeable. “Half-gram” refers to weight, while 0.5ml refers to volume. The two values only align when the formulation has a corresponding density.

The 0.5ml vape cartridge offers a middle ground between very small and full-size formats.

Common characteristics include:

• More capacity than a 0.3ml cartridge
• A shorter or slimmer body than some 1ml cartridges
• Broad availability
• Compatibility with many 510-style batteries
• Less stored liquid than a full 1ml cartridge

Check actual dimensions because some 0.5ml cartridges may have the same external width as 1ml models.

What Is a 2ml Cartridge?

A 2ml vape cartridge is a higher-capacity option designed to hold approximately twice the liquid volume of a 1ml model.

To create this additional capacity, manufacturers may increase the cartridge’s height, diameter, or both. As a result, 2ml cartridges may be less compatible with batteries that surround or conceal the cartridge.

Potential advantages include:

• Greater tank capacity
• Less frequent replacement
• Suitability for hardware designed around larger cartridges

Potential limitations include:

• Increased height or width
• Greater weight
• Reduced compatibility with recessed batteries
• More liquid at risk if the cartridge leaks or fails
• Different heating or wicking requirements

Local laws may restrict cartridge capacity or the products available in certain markets.

0.5ml vs. 1ml Cartridge

The primary difference between a 0.5ml and 1ml cartridge is nominal liquid capacity. A 1ml model is designed to hold approximately twice the volume of a 0.5ml model.

Feature	0.5ml cartridge	1ml cartridge
Nominal capacity	0.5 milliliters	1 milliliter
Relative size	Usually smaller	Usually larger
Replacement frequency	Potentially more frequent	Potentially less frequent
Concealed-battery fit	Often easier	Depends on dimensions
Liquid at risk from failure	Lower volume	Higher volume
Battery requirements	Design-specific	Design-specific

Capacity alone does not determine how long a cartridge will last. Actual duration depends on usage patterns, heating efficiency, formulation, airflow, and battery settings.

1ml vs. 2ml Cartridge

A 2ml cartridge offers approximately twice the nominal liquid capacity of a 1ml cartridge, but it may require a larger or specially designed battery.

Feature	1ml cartridge	2ml cartridge
Nominal capacity	1 milliliter	2 milliliters
Physical profile	Standard or compact	Often taller or wider
Hardware availability	Widely available	More device-specific
Concealed-battery compatibility	Common but not universal	More limited
Portability	Generally compact	Potentially bulkier
Replacement frequency	Moderate	Potentially lower

Before selecting the larger format, confirm the battery’s maximum supported cartridge height and diameter.

Does Cartridge Capacity Affect Physical Size?

Generally, a cartridge with greater capacity requires more internal tank space. This often makes it taller, wider, or both.

However, external size does not always increase in direct proportion to capacity. Manufacturers may create additional space by changing:

• Tank-wall thickness
• Mouthpiece shape
• Center-airway width
• Heating-element size
• Base construction
• Internal seal placement

Therefore, the capacity label should never replace a physical measurement when checking battery fit.

Does Cartridge Size Affect Battery Compatibility?

Yes. The cartridge’s external dimensions can affect whether it fits a particular battery.

Pen-Style Batteries

An exposed 510 vape pen battery may accept several cartridge sizes because the tank sits above the connector without being surrounded by a housing.

Concealed Batteries

A concealed battery contains a chamber that surrounds most of the cartridge. Its maximum supported diameter and height may exclude larger 1ml or 2ml cartridges.

Magnetic Batteries

Some batteries require a magnetic adapter. The adapter adds length and may change how deeply the cartridge sits inside the chamber.

The following should be checked before combining components:

• Thread type
• Cartridge diameter
• Cartridge height
• Battery-chamber dimensions
• Center-contact alignment
• Airflow-hole position
• Supported voltage and resistance

Does Cartridge Capacity Affect Performance?

Capacity does not directly determine heating quality. A larger cartridge is not automatically more powerful, efficient, or reliable.

Performance depends more heavily on:

• Atomizer design
• Ceramic or wick quality
• Intake-hole size
• Formulation viscosity
• Airflow
• Electrical resistance
• Battery voltage
• Manufacturing tolerances
• Seal quality

However, tank size can influence liquid pressure, heat retention, and how far the formulation must travel to reach the heating element. A well-designed cartridge should account for these factors.

Does a 1ml Cartridge Equal One Gram?

Not always. A milliliter measures volume, while a gram measures weight.

Whether 1ml equals 1 gram depends on the density of the liquid. Water has a density close to one gram per milliliter under ordinary conditions, but oils and other formulations can have different densities.

For this reason:

• 1ml describes tank volume.
• 1g describes material weight.
• The values should not be treated as interchangeable without formulation data.

Product labels and laboratory information should be used to determine actual contents.

How Full Should a Cartridge Be?

A cartridge may not appear completely full even when it contains the labeled amount. Manufacturers often leave a small space at the top of the tank.

This area is known as headspace. It may allow for:

• Component assembly
• Thermal expansion
• Pressure changes
• Proper sealing
• Movement of liquid within the tank

Some liquid may also be absorbed into a wick or ceramic core after filling. This can make the visible level appear lower.

A significant unexplained difference between the labeled and visible volume should be addressed with the manufacturer or licensed retailer.

How to Choose the Right Vape Cartridge Size

Consider the following factors when comparing cartridge capacities:

Battery Fit

Check the cartridge’s height and diameter against the battery’s supported dimensions.

Connection Type

Confirm that the cartridge and battery use the same connection, such as a 510 thread.

Electrical Requirements

Review the cartridge’s recommended voltage, resistance, and power range.

Formulation Compatibility

Confirm that the atomizer and intake holes are designed for the intended formulation.

Product Source

Purchase only from lawful, reputable sources that provide clear specifications and testing information.

Local Regulations

Cartridge sizes and permitted contents vary by location. Confirm the applicable rules before purchasing or transporting a product.

Storage Needs

Larger cartridges contain more liquid that may be exposed to heat, light, or air over a longer period. Consider whether the product can be stored according to its manufacturer’s instructions.

Common Problems With Larger Cartridges

A higher-capacity cartridge may experience the same issues as a smaller model, but its dimensions and liquid volume can introduce additional considerations.

Battery Fit Problems

The cartridge may be too wide or tall for a concealed battery.

Uneven Liquid Flow

The formulation may not move consistently toward the intake holes, especially when the cartridge is stored horizontally.

Leaking

More liquid can be lost if a seal, tank, or heating chamber fails.

Heat Exposure

A larger volume may remain in the cartridge longer, increasing the importance of correct storage.

Contact Problems

A tall or heavy cartridge can place additional stress on the threaded connection if the device is dropped or stored improperly.

How to Store Different Cartridge Sizes

Store cartridges upright in a cool, dry place away from direct sunlight, flames, children, and pets.

Recommended practices include:

• Keeping protective caps in place
• Avoiding hot vehicles
• Protecting glass tanks from impacts
• Keeping contact points clean and dry
• Removing leaking cartridges from batteries
• Following the manufacturer’s temperature guidance
• Using the original packaging when possible

A damaged, cracked, heavily leaking, or unusually discolored cartridge should not be used.

7) How to Choose a Compatible Battery and Cartridge

Learning how to choose a compatible battery and cartridge requires more than checking whether the two components screw together. A secure physical connection is important, but voltage, resistance, cartridge dimensions, airflow, and center-contact design also affect compatibility.

Many cartridge-based vaping products use a 510 thread connection, but “510 compatible” does not mean completely universal. Two components may share the same thread and still fail to work correctly together.

Before combining a vape battery and cartridge, compare their specifications, confirm the recommended operating range, and follow both manufacturers’ instructions.

Why Battery and Cartridge Compatibility Matters

A compatible battery and cartridge should:

• Connect without force
• Make reliable electrical contact
• Operate within a suitable voltage range
• Support the cartridge’s resistance
• Allow unobstructed airflow
• Fit without damaging either component
• Remain within manufacturer-approved limits

An incompatible setup may produce weak output, connection errors, restricted airflow, leaking, overheating, or a burnt taste. It may also damage the battery or cartridge.

Understand the Two Main Components

Before checking compatibility, it helps to understand what each component does.

Vape Battery

The vape battery stores electrical energy and supplies power to the cartridge’s heating element. Batteries may use fixed voltage, adjustable voltage, button activation, or automatic draw activation.

Vape Cartridge

The vape cartridge stores the formulation and contains the tank, heating element, intake holes, central airway, and mouthpiece.

The two components must be mechanically, electrically, and physically compatible to function together.

1. Check the Connection Type

Begin by confirming that the battery and cartridge use the same connector.

The most common format is the 510 thread, a small screw-style connection found on many vape pens, cartridges, tanks, and adapters.

A standard 510 cartridge usually has an external threaded base, while a 510 thread battery has a matching threaded socket.

Other products may use:

• Proprietary pod connections
• Magnetic connectors
• eGo threads
• Snap-in cartridges
• Fixed disposable designs
• Brand-specific adapters

A cartridge designed for a proprietary pod system will not work with a standard 510 battery unless the manufacturer provides an approved adapter.

2. Confirm the Thread Fit

A compatible cartridge should screw onto the battery smoothly by hand.

Stop if the connection:

• Feels rough or uneven
• Requires significant force
• Sits at an angle
• Wobbles after attachment
• Stops before the contacts meet
• Damages or shaves the threads

Never force two components together. Cross-threading can permanently damage the battery connector and cartridge base.

Attach the cartridge only until it feels secure. Overtightening may push down the center pin or damage the insulating ring.

3. Check Battery Voltage

Voltage is one of the most important factors when choosing a compatible vape battery.

The battery’s output must fall within the cartridge manufacturer’s recommended range. Too little voltage may result in weak heating, while excessive voltage can overheat the cartridge or create a burnt taste.

Fixed-Voltage Battery

A fixed-voltage battery operates at a preset output. It is simple to use, but the preset level must suit the cartridge.

Variable-Voltage Battery

A variable-voltage 510 battery allows the output to be adjusted. It may support a wider range of cartridges, provided its settings overlap with their recommended operating ranges.

When permitted by the manufacturer, start with the lowest supported setting and increase it gradually only if necessary.

4. Check Cartridge Resistance

Electrical resistance is measured in ohms. It influences how much current flows through the cartridge’s heating element at a particular voltage.

The battery must support the cartridge’s resistance range. A regulated battery may refuse to activate if it detects:

• Resistance that is too low
• Resistance that is too high
• A short circuit
• An unstable connection
• A failed heating element

Some batteries communicate these problems through flashing indicator lights. Since light codes vary, consult the battery manual for their meaning.

5. Compare Power Specifications

Some devices list output in watts instead of—or in addition to—voltage.

The relationship between voltage and cartridge resistance determines the power delivered to the heating element. The battery’s supported output should overlap with the cartridge’s recommended power range.

A physically compatible battery capable of producing high power may still be unsuitable for a small cartridge. Do not assume that the battery’s maximum setting is appropriate.

6. Measure Cartridge Diameter

Diameter is particularly important for concealed or recessed batteries.

A standard pen-style battery leaves the cartridge exposed, so it may accept several cartridge widths. A concealed 510 battery contains a chamber that surrounds the cartridge and has a strict diameter limit.

Check:

• Cartridge width
• Battery-chamber width
• Clearance around the mouthpiece
• Adapter width
• Manufacturer-listed maximum diameter

A cartridge can have the correct thread and still be too wide to fit inside the battery.

7. Check Cartridge Height

Cartridge height affects how the component fits and whether its mouthpiece remains accessible.

A short cartridge may sit too deeply inside a concealed battery. A tall cartridge may extend beyond the protective housing or place additional stress on the connector.

Some batteries include adjustable chambers or height adapters, while others support only a limited size range.

Do not assume that every 0.5ml or 1ml cartridge has the same dimensions. Capacity measures internal volume, not external height.

8. Inspect Center-Contact Alignment

A working battery and cartridge connection requires the center contact on the cartridge to touch the battery’s center pin.

Connection failure may occur when:

• The cartridge contact is too short.
• The battery pin is deeply recessed.
• Overtightening has pushed down the pin.
• Oil or condensation covers the contact.
• The insulating ring is damaged.
• Manufacturing tolerances prevent alignment.

Turn off the battery before inspecting or cleaning the connection. Do not use a metal tool to lift or pry at the contact pin.

9. Check Airflow Compatibility

Most cartridges require air to enter through openings near their base. The battery must leave these openings sufficiently clear.

Airflow can be restricted when:

• A battery rim covers the intake holes.
• A cartridge is screwed on too tightly.
• A recessed chamber is too narrow.
• A magnetic adapter blocks the airflow path.
• Residue accumulates around the connector.
• The cartridge’s airway becomes clogged.

Restricted airflow can reduce performance and may prevent a draw-activated battery from detecting inhalation.

10. Choose the Right Activation Type

Battery activation may be automatic or button-operated.

Draw-Activated Battery

A draw-activated model uses an airflow or pressure sensor. It supplies power when the user inhales.

This design is simple, but the battery and cartridge must provide sufficient airflow to trigger the sensor.

Button-Activated Battery

A button-operated battery activates when the user presses its control button. It may also provide variable voltage, preheat, locking, and battery-status features.

The best option depends on the cartridge specifications and the level of control required.

11. Check Whether an Adapter Is Required

Some concealed batteries use a magnetic 510 adapter.

The cartridge screws into the adapter, and the adapter is placed inside the battery chamber. Magnets then secure the assembly and align the electrical contacts.

When selecting an adapter, confirm:

• Battery model
• Adapter length
• Cartridge dimensions
• Contact design
• Magnetic alignment
• Airflow clearance

Use only an adapter approved for the battery. Similar-looking adapters are not necessarily interchangeable.

12. Match the Cartridge to the Formulation

A battery may be electrically compatible while the cartridge itself is unsuitable for the intended formulation.

Cartridge characteristics that affect formulation compatibility include:

• Intake-hole size
• Ceramic porosity
• Wick design
• Heating-element resistance
• Tank materials
• Seal construction
• Recommended temperature range

A formulation that is too thick may not reach the heating element efficiently. A liquid that is too thin may flood the chamber or leak.

Use only formulations specifically intended for the cartridge. Do not add household oils or unauthorized substances.

13. Review Manufacturer Specifications

The most reliable compatibility information comes from the product manufacturers.

Look for:

• Connector type
• Supported voltage
• Resistance range
• Recommended power
• Maximum cartridge diameter
• Supported cartridge height
• Compatible adapters
• Charging requirements
• Operating instructions
• Safety warnings

If these specifications are missing, contact the manufacturer or choose hardware with clearer documentation.

14. Consider Cartridge Capacity

Cartridge capacity—such as 0.5ml, 1ml, or 2ml—describes internal volume. It does not determine connection type or electrical compatibility.

However, larger cartridges are often taller or wider. A 1ml cartridge may fit a standard pen battery but be too large for a compact concealed model. A 2ml cartridge may require a battery designed for oversized tanks.

Compare actual measurements rather than relying on capacity alone.

15. Choose a Reputable Product Source

Purchase batteries and cartridges only from lawful, reputable sources that provide:

• Clear product specifications
• Authentic hardware
• Manufacturer information
• Batch or model identification
• Usage instructions
• Appropriate testing information
• Customer-support options

Avoid unverified products, damaged packaging, counterfeit hardware, or cartridges obtained from informal sources.

Battery and Cartridge Compatibility Checklist

Use this checklist before combining new hardware:

Compatibility factor	What to verify
Connection	Both components use the same thread or approved adapter
Voltage	Battery output matches the cartridge’s recommended range
Resistance	Cartridge resistance is supported by the battery
Power	Battery wattage stays within cartridge limits
Diameter	Cartridge fits the battery or chamber
Height	Mouthpiece remains accessible
Center contact	Electrical contacts meet properly
Airflow	Intake openings remain unobstructed
Activation	Cartridge airflow supports the battery’s sensor
Adapter	Correct manufacturer-approved adapter is available
Formulation	Cartridge is designed for the intended liquid
Condition	Neither component is damaged, leaking, or contaminated

Warning Signs of an Incompatible Setup

Stop using the components if you notice:

• The cartridge cannot be attached smoothly.
• The battery repeatedly flashes an error.
• The cartridge does not activate.
• The device becomes unusually hot.
• The cartridge produces a persistent burnt taste.
• Airflow is severely restricted.
• Liquid leaks into the battery connection.
• The battery activates unexpectedly.
• The cartridge or battery shows physical damage.
• The device produces an unusual odor.

Do not continue testing hardware that overheats, swells, sparks, or shows signs of an electrical fault.

Common Compatibility Mistakes

Assuming Every 510 Product Is Universal

The 510 thread is broadly used, but physical and electrical differences still exist.

Choosing by Appearance

Two cartridges may look almost identical while having different voltage, resistance, or airflow requirements.

Using the Highest Voltage

Higher voltage does not automatically improve performance. It may overheat the cartridge.

Overtightening the Cartridge

Excessive force can damage the threads, center pin, or insulating ring.

Ignoring Cartridge Dimensions

A cartridge may connect correctly but be too wide or tall for a concealed battery.

Using an Unapproved Charger

A charger that physically connects may still have unsuitable electrical specifications. Use only equipment approved by the battery manufacturer.

8) Common Compatibility Problems and FAQs

Common 510 compatibility problems include cartridges that do not make electrical contact, batteries that blink after activation, restricted airflow, incorrect voltage, unsuitable resistance, and cartridges that do not fit inside recessed battery chambers.

Although the 510 thread is widely used, it is not completely universal. A battery and cartridge may have matching threads while differing in dimensions, electrical requirements, airflow placement, or center-contact design.

This guide covers the most frequent 510 battery and cartridge problems, their possible causes, safe troubleshooting steps, and answers to common compatibility questions.

Why Do 510 Compatibility Problems Occur?

A functional 510 vape setup requires several types of compatibility:

• Mechanical compatibility
• Electrical compatibility
• Dimensional compatibility
• Airflow compatibility
• Contact alignment
• Manufacturer-supported operation

A problem in any of these areas can prevent the cartridge from working correctly.

For example, a cartridge may screw onto the battery but fail to activate because the center contacts do not meet. Another cartridge may work electrically but be too wide for a concealed battery.

1. 510 Cartridge Not Working

A 510 cartridge not working is one of the most common problems. Possible causes include:

• Discharged battery
• Battery turned off
• Loose connection
• Overtightened cartridge
• Dirty electrical contacts
• Recessed center pin
• Unsupported cartridge resistance
• Failed heating element
• Damaged battery
• Blocked airflow

Begin by checking whether the battery is charged and powered on. Remove the cartridge, inspect the threads and contacts, and reattach it gently.

Do not force the cartridge or use metal tools to adjust the connector.

2. Cartridge Screws On but Does Not Activate

If the cartridge screws on but does not work, the thread fit may be correct while the electrical connection is incomplete.

The center contact on the cartridge must touch the center pin inside the battery. Small differences in contact height or connector depth can prevent this from happening.

Other possible causes include:

• Oil or condensation on the contacts
• Damaged insulating ring
• Cartridge attached too loosely
• Center pin pushed down by overtightening
• Incompatible magnetic adapter
• Cartridge resistance outside the supported range

Turn off the battery before inspecting the connection. Follow the manufacturer’s cleaning instructions and discontinue use if the contacts appear damaged.

3. 510 Battery Blinking

A 510 battery blinking usually indicates a status notification or error. The exact meaning depends on the battery model.

Common reasons include:

• Low battery charge
• Cartridge connection failure
• Short-circuit protection
• Unsupported resistance
• Activation cutoff
• Overheating protection
• Charging status
• Selected voltage level

Count the flashes and note their color. Compare the pattern with the battery manual because blinking codes are not standardized across manufacturers.

If the battery repeatedly reports an error with a particular cartridge, stop using that combination until compatibility is confirmed.

4. Cartridge Is Too Wide for the Battery

A cartridge may have the correct thread but still be too wide for a recessed or concealed battery.

This problem is especially common with:

• Large-capacity cartridges
• Wide mouthpiece designs
• Oversized tanks
• Concealed cartridge batteries
• Batteries with narrow protective chambers

Compare the cartridge diameter with the battery’s maximum supported width. Do not force an oversized cartridge into the chamber.

An exposed pen-style 510 thread battery may offer more physical clearance, but its electrical specifications must still match the cartridge.

5. Cartridge Is Too Short or Too Tall

Height can also cause vape cartridge compatibility problems.

A short cartridge may sit too deeply inside a concealed battery, making the mouthpiece difficult to reach. A tall cartridge may extend beyond the protective housing or put additional strain on the connector.

Some batteries include adjustable height settings or removable collars. Others require a cartridge within a specific dimensional range.

Check the actual measurements instead of relying only on capacity labels such as 0.5ml or 1ml.

6. Center Contacts Do Not Meet

A working 510 connection depends on proper center-contact alignment.

Contact failure can result from:

• A short cartridge contact
• A deeply recessed battery pin
• Overtightening
• Debris or liquid buildup
• A damaged connector
• Manufacturing variations
• An incorrect adapter

Some batteries use spring-loaded center pins to accommodate small differences. Others use fixed contacts with less flexibility.

Never pry at a battery pin with a knife, screwdriver, paper clip, or other metal object. This can damage the insulator or create an electrical fault.

7. 510 Cartridge Airflow Problem

A 510 cartridge airflow problem may make the device difficult to draw from or prevent an automatic battery from activating.

Common causes include:

• Cartridge screwed on too tightly
• Battery rim blocking the intake holes
• Narrow recessed chamber
• Incorrect magnetic adapter
• Condensation inside the airway
• Thickened residue
• Formulation flooding the heating chamber
• Debris inside the mouthpiece

Check whether the airflow holes near the cartridge base remain exposed. Follow the cartridge manufacturer’s cleaning procedure if the central airway is clogged.

Avoid inserting sharp objects into the cartridge because they can damage internal components.

8. Draw-Activated Battery Does Not Respond

A draw-activated battery uses a pressure or airflow sensor. If the cartridge does not provide the expected airflow, the sensor may not detect inhalation.

Possible causes include:

• Clogged cartridge
• Blocked airflow holes
• Poor cartridge-to-battery fit
• Leaking liquid inside the battery
• Failed airflow sensor
• Discharged battery
• Incompatible cartridge design

If a compatible button-operated battery works with the cartridge but the automatic battery does not, airflow or sensor activation may be the issue.

Do not continue using a draw-activated battery if liquid has entered its internal housing.

9. Battery Works With One Cartridge but Not Another

If a 510 battery works with one cartridge but not another, the problem is likely related to the second cartridge or the way it interacts with the battery.

Possible explanations include:

• Different cartridge resistance
• Different contact height
• Failed heating element
• Blocked airflow
• Incompatible voltage requirements
• Cartridge manufacturing defect
• Different physical dimensions

The presence of the same 510 thread does not confirm that two cartridges have identical electrical or mechanical specifications.

10. Cartridge Works on One Battery but Not Another

When a cartridge functions on one battery but not another, compare the batteries’:

• Voltage output
• Supported resistance
• Center-pin depth
• Airflow design
• Connector condition
• Activation method
• Magnetic adapters
• Battery charge levels

One battery may have a spring-loaded pin that reaches the cartridge contact, while another may have a fixed pin that sits too deeply.

The second battery may also reject the cartridge’s resistance or fail to provide enough airflow for automatic activation.

11. Voltage Too Low

A battery operating below the cartridge’s recommended range may produce:

• Weak heating
• Limited aerosol
• Delayed activation
• Inconsistent output
• Apparent cartridge failure

Confirm that the battery’s output overlaps with the cartridge manufacturer’s recommended voltage.

Do not immediately switch to the highest setting. Increase voltage only within the approved range.

12. Voltage Too High

Excessive voltage can cause:

• Burnt taste
• Overheating
• Harsh output
• Faster liquid consumption
• Atomizer damage
• Cartridge leaking
• Unusual discoloration

A variable-voltage 510 battery should usually be started at the lowest supported setting. Higher power is not automatically better.

Stop using the cartridge if it develops a persistent burnt taste or becomes unusually hot.

13. Unsupported Cartridge Resistance

Electrical resistance affects how much current flows through the heating element.

A battery may refuse to activate if the cartridge resistance is:

• Below its minimum limit
• Above its maximum limit
• Unstable
• Associated with a short circuit
• Unreadable because of poor contact

Some regulated batteries signal a resistance problem by flashing. Check the manuals for both products before testing another power setting.

14. Magnetic Adapter Problems

A concealed battery may require a 510 magnetic adapter between the cartridge and battery.

Compatibility problems may occur when:

• The wrong adapter is used.
• The cartridge is not fully seated in the adapter.
• The adapter is too long or short.
• The magnetic contacts are dirty.
• The adapter blocks airflow.
• The cartridge is too wide for the chamber.
• The adapter does not align with the battery contacts.

Use only an adapter approved for the battery model. Similar-looking adapters may have different dimensions or contact arrangements.

15. Cartridge Becomes Hot

Some warmth can occur during operation, but a cartridge that becomes unusually hot may indicate a problem.

Possible causes include:

• Voltage set too high
• Repeated activation without cooling time
• Restricted airflow
• Electrical fault
• Unsuitable resistance
• Stuck activation button
• Failed heating element

Stop using the device immediately if the battery or cartridge becomes excessively hot, activates unexpectedly, swells, sparks, or produces an unusual odor.

Move it away from flammable materials without handling it unnecessarily, and follow the manufacturer’s safety guidance.

16. Persistent Burnt Taste

A burnt-tasting cartridge may result from compatibility or cartridge-performance issues.

Common causes include:

• Excessive battery voltage
• Insufficient liquid reaching the atomizer
• Worn heating element
• Low liquid level
• Thick or incompatible formulation
• Repeated long activations
• Excessive preheating

Lower the voltage only if the cartridge manufacturer supports the selected setting. A cartridge that continues to taste burnt may need to be replaced.

17. Cartridge Leaking Into the Battery

Liquid around the 510 connector can interrupt electrical contact and may damage the battery.

Leak causes include:

• Damaged cartridge seals
• Cracked tank
• Excessive heat
• Overfilling
• Unsuitable formulation viscosity
• Pressure changes
• Improper storage
• Repeated preheating

Turn off the battery and remove the leaking cartridge. Follow the battery manufacturer’s cleaning instructions.

Do not charge or operate a battery if liquid has entered its charging port or internal housing.

18. Cartridge Is Difficult to Remove

A cartridge may become stuck because of overtightening, leaked liquid, damaged threads, or residue around the connection.

Allow the device to cool before handling it. Grip the cartridge near its base and follow the manufacturer’s removal instructions.

Avoid using pliers or other tools, which may crack the tank, deform the connector, or damage the battery.

Safe 510 Compatibility Troubleshooting

Use this basic troubleshooting sequence:

1. Turn off the battery.
2. Allow warm components to cool.
3. Remove the cartridge gently.
4. Inspect both components for leaks or damage.
5. Confirm the battery is charged.
6. Verify the thread type.
7. Compare voltage and resistance specifications.
8. Check cartridge height and diameter.
9. Inspect the contacts for residue.
10. Confirm that airflow holes are unobstructed.
11. Reattach the cartridge without overtightening.
12. Test only at a manufacturer-supported setting.

Stop if the battery continues to report an error or either component becomes hot.

510 Compatibility Checklist

Problem area	What to check
Thread	Both products use the same connector
Physical fit	Cartridge height and diameter are supported
Contact	Center contacts meet and remain clean
Voltage	Battery output matches cartridge requirements
Resistance	Battery supports the cartridge’s ohm range
Power	Wattage remains within recommended limits
Airflow	Intake openings are not covered
Activation	Cartridge airflow can trigger the battery
Adapter	Correct adapter is properly installed
Condition	Components are free from damage and leaks

Frequently Asked Questions

Are all 510 cartridges compatible with all 510 batteries?

No. They share a general thread format, but voltage, resistance, dimensions, airflow, and center-contact depth can differ.

Why is my 510 battery blinking?

It may indicate a low charge, poor connection, resistance error, short circuit, activation cutoff, or overheating protection. Check the manual for the specific blinking pattern.

Why does my cartridge fit but not work?

The center contacts may not meet, the contacts may be dirty, the battery may be discharged, or the cartridge resistance may be unsupported.

Can I use a 1ml cartridge with any 510 vape pen?

Not necessarily. Confirm its diameter, height, voltage range, resistance, airflow, and contact design.

Why does my battery work with some cartridges but not others?

Cartridges can have different resistances, contact heights, dimensions, heating systems, and voltage requirements despite using the same thread.

How tight should a 510 cartridge be?

It should be gently hand-tightened only until secure. Overtightening can damage the threads or push down the center pin.

Can a magnetic adapter fix compatibility?

It can provide the required mechanical connection for a compatible battery, but it cannot correct unsuitable voltage, resistance, cartridge dimensions, or airflow.

Why is there no airflow through my cartridge?

The central airway may be clogged, the battery may cover the intake holes, or the cartridge may be screwed on too tightly.

Can I clean the 510 connector?

Follow the manufacturer’s approved cleaning method after turning off the battery. Do not use metal tools or allow liquid to enter the battery.

Why does my cartridge taste burnt on a new battery?

The battery voltage may be too high for the cartridge. Stop using it and compare the manufacturers’ recommended settings.

Is a button battery more compatible than a draw-activated battery?

Not automatically. A button battery may be less dependent on airflow for activation, but its voltage, resistance, dimensions, and connector must still match.

When should I replace a cartridge?

Replace it if it is empty, cracked, heavily leaking, physically damaged, no longer heating, or producing a persistent burnt taste.

When should I replace a battery?

Stop using a battery that is swollen, damaged, overheating, leaking, activating unexpectedly, failing to charge correctly, or showing signs of an electrical fault.
